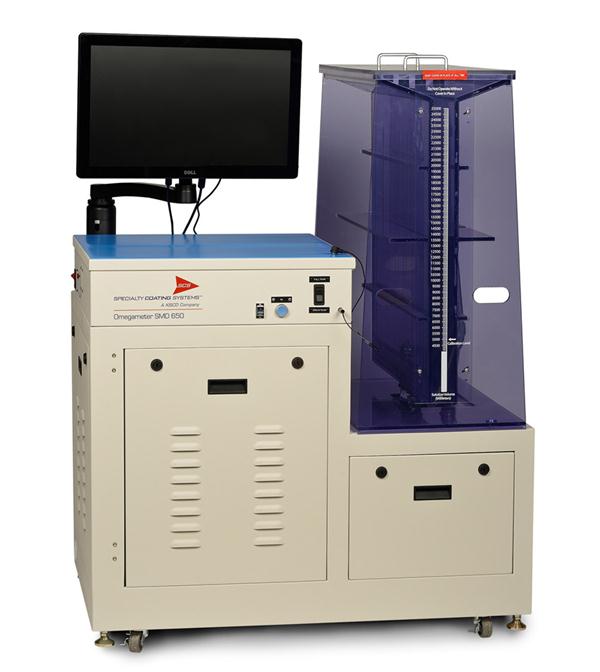

SCS OMEGAMETER SMD 650
來自SCS公司的Omegameter測試系統是工業標準，采用靜態測量的方法判定印刷電路板及組裝的離子污染。
實際上，SCS的名字等同于自動ROSE（Resistivity of Solvent Extract萃取溶液電阻率）測試系統。它使制造商能夠依照IPC-650（測試方法2.3.25）進行污染測試以達到其過程控制的目的。
Omegameter SMD 650是可以從SCS購買到的最新的自動ROSE測試系統，當基板浸入超純的萃取溶液后采用靜態萃取的方法測量電阻率的變化。電阻率的總量變化表明了污染的水平，它通常代表了來自于上游制作工藝處理的殘留結果。
Omegameter SMD 650 提供了制造商提供了加熱或不加熱測試溶液去測試器件的能力。IPC-TM-650 描述了加熱測試液
的益處“加速和改善不易接觸到的部位的離子萃取效率，如表面貼裝器件的底部”除了增加效能外，加熱系統還可以確保測試溶液的溫度一致性，反之一個不加熱的系統溶液的溫度會非常容易受到泵在測試運行期間由于摩擦力而產生的熱量影響。變化的溫度會使結果的可靠性降低。
Omegameter SMD 650的軟件控制提供了無限的測試結果曲線的儲存，并且可以用戶定制化使操作者非常容易識別。另外軟件儲存測試結果可以在后期查閱、分類、過濾、打印為全幅PDF文件并且或者輸出為電子數據表用于未來的數據分析。提供密碼保護的使用給予操作者特性授權，保護使用者的賬號。
作為市場上第一臺靜態測試系統，SCS 的Omegameter系列作為一個精確、有效和實用的質量保證工具有很長的歷史了。Omegameter SMD 650 繼續延續著這一遺產英文它在工業界是非常值得信賴的名字。
OMEGAMETER SMD 650 產品特性
? 鑒定存在于裸板、組裝后的印刷電路板及其它電子部件的離子污染。
? 提供了一種精確且可重復的現場測定清潔度的方法。
? 提供了直接的過程控制結果，無需外部實驗室測試。
? 在涂敷及灌封應用之前驗證表面清潔度。
? 遵從目前工業的技術規范如ANSI/J-STD-001和 IPC-TM-650以及廢除的軍用標準如MIL-STD-2000A。
OMEGAMETER SMD 650 特性
? 自包含式系統
? 簡單，界面友好的操作特性，包含計算機和顯示器。
? Stair-step design allows for easier loading of parts into test cell
? 按照 IPC-TM-650 加熱測試溶液改善污染物的溶解性。
? 噴射嘴可以增加污染物的去除。
? 自動處理識別測試的結束。
軟件特征
? 專用的基于 Windows 的軟件及觸摸屏。
? 無限的測試結果曲線儲存及定制的名稱。
? 測試時間與污染量的對應圖表。
? 分類、過濾機回顧歷史測試結果。
? 全尺寸的 PDF 格式測試報告。
? 密碼保護使用者賬號
? 可選的 LAN 連接
? 方便的 USB 接口用于外圍設備如鍵盤、鼠標、打印機
等。
OMEGAMETER SMD 650 規格
電源輸入 220VAC±10%, 50/60Hz, 6.5A
尺寸（寬深高）
109.2 x 73.7 x137.2cm
26”x26”的測試腔
重量 252 磅/114 公斤
溶液容量 10 加侖/37.9 升
測試腔選件 8”x 8”/20.3cm x 20.3cm
12”x 12”/30.5cm x 30.5cm
12”x 18”/30.5cm x45.7cm
18”x 18”/45.7cm x 45.7cm
26”x 26”/66.0cm x 66.0cm
Overview
From SCS, the name synonymous with automated ROSE (Resistivity of Solvent Extract) testing systems, comes the SCS Omegameter — an industry standard for accurate, efficient and practical quality assurance testing. The first automated test system on the market, the SCS Omegameter has become the preferred choice for ionic testing utilizing the “static test” methodology.
Offering manufacturers the ability to test components with a heated or non-heated test solution, the Omegameter performs cleanliness testing on printed circuit boards and assemblies, accurately measuring contamination that is often the result of residues from upstream manufacturing processes. The Omegameter SMD 650 is operated by proprietary Windows?-based software, which provides unlimited storage of test profiles that can be customized for easy identification by operators.
With the SCS Omegameter, manufacturers benefit from an effective and practical quality assurance tool for a wide range of commercial applications.
-
Identifies the presence of ionic contamination on bare and assembled printed circuit boards and other electronic components.
-
Provides an accurate and repeatable method for determining cleanliness on site.
-
Provides immediate process control results, eliminating the need for outside laboratory testing.
-
Verifies proper cleanliness of surfaces prior to the application of conformal coatings or potting compounds.
-
Complies with current industrial specifications such as ANSI/J-STD-001 and IPC-TM-650, and obsolete military specifications, e.g. MIL-STD-2000A.
OMEGAMETER SMD 650 FEATURES
-
Self-contained system
-
Simple, user-friendly operation featuring integrated computer and display
-
Stair-step design allows for easier loading of parts into test cell
-
Heated test solution for improved solubility of contaminants per IPC-TM-650
-
Spray jets increase contamination removal
-
Automated process identifies end of test
-
Multiple test cell assembly sizes available
SOFTWARE FEATURES
-
Proprietary Windows?-based software with touchscreen monitor
-
Unlimited test profiles with custom names
-
Runtime contamination graphs
-
Sort, filter and review historical test results
-
Password-protected user accounts
-
Optional LAN connectivity
Specifications
|
Solution Capacity
|
10 gal / 37.9 L
|
|
|
- 8 in x 8 in / 20.3 cm x 20.3 cm
|
|
|
- 12 in x 12 in / 30.5 cm x 30.5 cm
|
|
Test cell assembly options
|
- 12 in x 18 in / 30.5 cm x 45.7 cm
|
|
|
- 18 in x 18 in / 45.7 cm x 45.7 cm
|
|
|
- 26 in x 26 in / 66.0 cm x 66.0 cm
|
|
Dimensions (W x D x H)
|
43 x 29 x 54 in / 109.2 x 73.7 x 137.2 cm (with 26 x 26 in test cell)
|
|
Power Input
|
220 VAC +/- 10%, 50/60 Hz, 6.5A
|
|
Weight
|
252 lb / 114 kg
|
SCS OMEGAMETER SMD 650
來自SCS公司的Omegameter測試系統是工業標準，采用靜態測量的方法判定印刷電路板及組裝的離子污染。
實際上，SCS的名字等同于自動ROSE（Resistivity of Solvent Extract萃取溶液電阻率）測試系統。它使制造商能夠依照IPC-650（測試方法2.3.25）進行污染測試以達到其過程控制的目的。
Omegameter SMD 650是可以從SCS購買到的最新的自動ROSE測試系統，當基板浸入超純的萃取溶液后采用靜態萃取的方法測量電阻率的變化。電阻率的總量變化表明了污染的水平，它通常代表了來自于上游制作工藝處理的殘留結果。
Omegameter SMD 650 提供了制造商提供了加熱或不加熱測試溶液去測試器件的能力。IPC-TM-650 描述了加熱測試液
的益處“加速和改善不易接觸到的部位的離子萃取效率，如表面貼裝器件的底部”除了增加效能外，加熱系統還可以確保測試溶液的溫度一致性，反之一個不加熱的系統溶液的溫度會非常容易受到泵在測試運行期間由于摩擦力而產生的熱量影響。變化的溫度會使結果的可靠性降低。
Omegameter SMD 650的軟件控制提供了無限的測試結果曲線的儲存，并且可以用戶定制化使操作者非常容易識別。另外軟件儲存測試結果可以在后期查閱、分類、過濾、打印為全幅PDF文件并且或者輸出為電子數據表用于未來的數據分析。提供密碼保護的使用給予操作者特性授權，保護使用者的賬號。
作為市場上第一臺靜態測試系統，SCS 的Omegameter系列作為一個精確、有效和實用的質量保證工具有很長的歷史了。Omegameter SMD 650 繼續延續著這一遺產英文它在工業界是非常值得信賴的名字。
OMEGAMETER SMD 650 產品特性
? 鑒定存在于裸板、組裝后的印刷電路板及其它電子部件的離子污染。
? 提供了一種精確且可重復的現場測定清潔度的方法。
? 提供了直接的過程控制結果，無需外部實驗室測試。
? 在涂敷及灌封應用之前驗證表面清潔度。
? 遵從目前工業的技術規范如ANSI/J-STD-001和 IPC-TM-650以及廢除的軍用標準如MIL-STD-2000A。
OMEGAMETER SMD 650 特性
? 自包含式系統
? 簡單，界面友好的操作特性，包含計算機和顯示器。
? Stair-step design allows for easier loading of parts into test cell
? 按照 IPC-TM-650 加熱測試溶液改善污染物的溶解性。
? 噴射嘴可以增加污染物的去除。
? 自動處理識別測試的結束。
軟件特征
? 專用的基于 Windows 的軟件及觸摸屏。
? 無限的測試結果曲線儲存及定制的名稱。
? 測試時間與污染量的對應圖表。
? 分類、過濾機回顧歷史測試結果。
? 全尺寸的 PDF 格式測試報告。
? 密碼保護使用者賬號
? 可選的 LAN 連接
? 方便的 USB 接口用于外圍設備如鍵盤、鼠標、打印機
等。
OMEGAMETER SMD 650 規格
電源輸入 220VAC±10%, 50/60Hz, 6.5A
尺寸（寬深高）
109.2 x 73.7 x137.2cm
26”x26”的測試腔
重量 252 磅/114 公斤
溶液容量 10 加侖/37.9 升
測試腔選件 8”x 8”/20.3cm x 20.3cm
12”x 12”/30.5cm x 30.5cm
12”x 18”/30.5cm x45.7cm
18”x 18”/45.7cm x 45.7cm
26”x 26”/66.0cm x 66.0cm
Overview
From SCS, the name synonymous with automated ROSE (Resistivity of Solvent Extract) testing systems, comes the SCS Omegameter — an industry standard for accurate, efficient and practical quality assurance testing. The first automated test system on the market, the SCS Omegameter has become the preferred choice for ionic testing utilizing the “static test” methodology.
Offering manufacturers the ability to test components with a heated or non-heated test solution, the Omegameter performs cleanliness testing on printed circuit boards and assemblies, accurately measuring contamination that is often the result of residues from upstream manufacturing processes. The Omegameter SMD 650 is operated by proprietary Windows?-based software, which provides unlimited storage of test profiles that can be customized for easy identification by operators.
With the SCS Omegameter, manufacturers benefit from an effective and practical quality assurance tool for a wide range of commercial applications.
-
Identifies the presence of ionic contamination on bare and assembled printed circuit boards and other electronic components.
-
Provides an accurate and repeatable method for determining cleanliness on site.
-
Provides immediate process control results, eliminating the need for outside laboratory testing.
-
Verifies proper cleanliness of surfaces prior to the application of conformal coatings or potting compounds.
-
Complies with current industrial specifications such as ANSI/J-STD-001 and IPC-TM-650, and obsolete military specifications, e.g. MIL-STD-2000A.
OMEGAMETER SMD 650 FEATURES
-
Self-contained system
-
Simple, user-friendly operation featuring integrated computer and display
-
Stair-step design allows for easier loading of parts into test cell
-
Heated test solution for improved solubility of contaminants per IPC-TM-650
-
Spray jets increase contamination removal
-
Automated process identifies end of test
-
Multiple test cell assembly sizes available
SOFTWARE FEATURES
-
Proprietary Windows?-based software with touchscreen monitor
-
Unlimited test profiles with custom names
-
Runtime contamination graphs
-
Sort, filter and review historical test results
-
Password-protected user accounts
-
Optional LAN connectivity
Specifications
|
Solution Capacity
|
10 gal / 37.9 L
|
|
|
- 8 in x 8 in / 20.3 cm x 20.3 cm
|
|
|
- 12 in x 12 in / 30.5 cm x 30.5 cm
|
|
Test cell assembly options
|
- 12 in x 18 in / 30.5 cm x 45.7 cm
|
|
|
- 18 in x 18 in / 45.7 cm x 45.7 cm
|
|
|
- 26 in x 26 in / 66.0 cm x 66.0 cm
|
|
Dimensions (W x D x H)
|
43 x 29 x 54 in / 109.2 x 73.7 x 137.2 cm (with 26 x 26 in test cell)
|
|
Power Input
|
220 VAC +/- 10%, 50/60 Hz, 6.5A
|
|
Weight
|
252 lb / 114 kg
|
SCS OMEGAMETER SMD 650
來自SCS公司的Omegameter測試系統是工業標準，采用靜態測量的方法判定印刷電路板及組裝的離子污染。
實際上，SCS的名字等同于自動ROSE（Resistivity of Solvent Extract萃取溶液電阻率）測試系統。它使制造商能夠依照IPC-650（測試方法2.3.25）進行污染測試以達到其過程控制的目的。
Omegameter SMD 650是可以從SCS購買到的最新的自動ROSE測試系統，當基板浸入超純的萃取溶液后采用靜態萃取的方法測量電阻率的變化。電阻率的總量變化表明了污染的水平，它通常代表了來自于上游制作工藝處理的殘留結果。
Omegameter SMD 650 提供了制造商提供了加熱或不加熱測試溶液去測試器件的能力。IPC-TM-650 描述了加熱測試液
的益處“加速和改善不易接觸到的部位的離子萃取效率，如表面貼裝器件的底部”除了增加效能外，加熱系統還可以確保測試溶液的溫度一致性，反之一個不加熱的系統溶液的溫度會非常容易受到泵在測試運行期間由于摩擦力而產生的熱量影響。變化的溫度會使結果的可靠性降低。
Omegameter SMD 650的軟件控制提供了無限的測試結果曲線的儲存，并且可以用戶定制化使操作者非常容易識別。另外軟件儲存測試結果可以在后期查閱、分類、過濾、打印為全幅PDF文件并且或者輸出為電子數據表用于未來的數據分析。提供密碼保護的使用給予操作者特性授權，保護使用者的賬號。
作為市場上第一臺靜態測試系統，SCS 的Omegameter系列作為一個精確、有效和實用的質量保證工具有很長的歷史了。Omegameter SMD 650 繼續延續著這一遺產英文它在工業界是非常值得信賴的名字。
OMEGAMETER SMD 650 產品特性
? 鑒定存在于裸板、組裝后的印刷電路板及其它電子部件的離子污染。
? 提供了一種精確且可重復的現場測定清潔度的方法。
? 提供了直接的過程控制結果，無需外部實驗室測試。
? 在涂敷及灌封應用之前驗證表面清潔度。
? 遵從目前工業的技術規范如ANSI/J-STD-001和 IPC-TM-650以及廢除的軍用標準如MIL-STD-2000A。
OMEGAMETER SMD 650 特性
? 自包含式系統
? 簡單，界面友好的操作特性，包含計算機和顯示器。
? Stair-step design allows for easier loading of parts into test cell
? 按照 IPC-TM-650 加熱測試溶液改善污染物的溶解性。
? 噴射嘴可以增加污染物的去除。
? 自動處理識別測試的結束。
軟件特征
? 專用的基于 Windows 的軟件及觸摸屏。
? 無限的測試結果曲線儲存及定制的名稱。
? 測試時間與污染量的對應圖表。
? 分類、過濾機回顧歷史測試結果。
? 全尺寸的 PDF 格式測試報告。
? 密碼保護使用者賬號
? 可選的 LAN 連接
? 方便的 USB 接口用于外圍設備如鍵盤、鼠標、打印機
等。
OMEGAMETER SMD 650 規格
電源輸入 220VAC±10%, 50/60Hz, 6.5A
尺寸（寬深高）
109.2 x 73.7 x137.2cm
26”x26”的測試腔
重量 252 磅/114 公斤
溶液容量 10 加侖/37.9 升
測試腔選件 8”x 8”/20.3cm x 20.3cm
12”x 12”/30.5cm x 30.5cm
12”x 18”/30.5cm x45.7cm
18”x 18”/45.7cm x 45.7cm
26”x 26”/66.0cm x 66.0cm
Overview
From SCS, the name synonymous with automated ROSE (Resistivity of Solvent Extract) testing systems, comes the SCS Omegameter — an industry standard for accurate, efficient and practical quality assurance testing. The first automated test system on the market, the SCS Omegameter has become the preferred choice for ionic testing utilizing the “static test” methodology.
Offering manufacturers the ability to test components with a heated or non-heated test solution, the Omegameter performs cleanliness testing on printed circuit boards and assemblies, accurately measuring contamination that is often the result of residues from upstream manufacturing processes. The Omegameter SMD 650 is operated by proprietary Windows?-based software, which provides unlimited storage of test profiles that can be customized for easy identification by operators.
With the SCS Omegameter, manufacturers benefit from an effective and practical quality assurance tool for a wide range of commercial applications.
-
Identifies the presence of ionic contamination on bare and assembled printed circuit boards and other electronic components.
-
Provides an accurate and repeatable method for determining cleanliness on site.
-
Provides immediate process control results, eliminating the need for outside laboratory testing.
-
Verifies proper cleanliness of surfaces prior to the application of conformal coatings or potting compounds.
-
Complies with current industrial specifications such as ANSI/J-STD-001 and IPC-TM-650, and obsolete military specifications, e.g. MIL-STD-2000A.
OMEGAMETER SMD 650 FEATURES
-
Self-contained system
-
Simple, user-friendly operation featuring integrated computer and display
-
Stair-step design allows for easier loading of parts into test cell
-
Heated test solution for improved solubility of contaminants per IPC-TM-650
-
Spray jets increase contamination removal
-
Automated process identifies end of test
-
Multiple test cell assembly sizes available
SOFTWARE FEATURES
-
Proprietary Windows?-based software with touchscreen monitor
-
Unlimited test profiles with custom names
-
Runtime contamination graphs
-
Sort, filter and review historical test results
-
Password-protected user accounts
-
Optional LAN connectivity
Specifications
|
Solution Capacity
|
10 gal / 37.9 L
|
|
|
- 8 in x 8 in / 20.3 cm x 20.3 cm
|
|
|
- 12 in x 12 in / 30.5 cm x 30.5 cm
|
|
Test cell assembly options
|
- 12 in x 18 in / 30.5 cm x 45.7 cm
|
|
|
- 18 in x 18 in / 45.7 cm x 45.7 cm
|
|
|
- 26 in x 26 in / 66.0 cm x 66.0 cm
|
|
Dimensions (W x D x H)
|
43 x 29 x 54 in / 109.2 x 73.7 x 137.2 cm (with 26 x 26 in test cell)
|
|
Power Input
|
220 VAC +/- 10%, 50/60 Hz, 6.5A
|
|
Weight
|
252 lb / 114 kg
|
